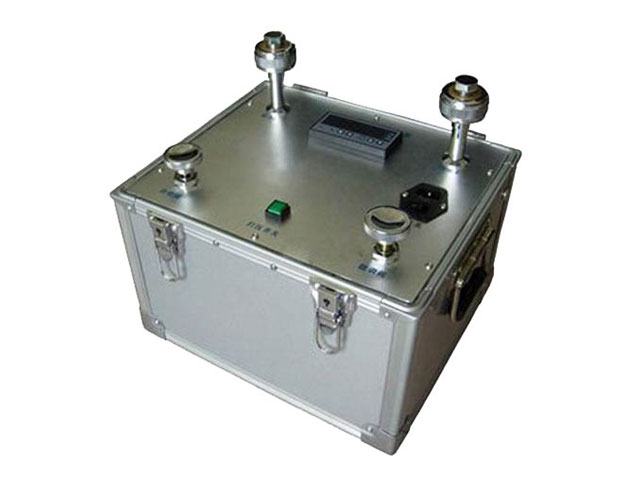

Fully electric, the DTY2009 series electric pressure source offers a clean and dry pressure up to 0-8700 psi. A quick, accurate, and portable pressure source, the new DTY2009 series electric pressure source is designed for extended use wherever your job takes you.
DTY2009 series electric pressure source technical parameters
| Type A | Type B |
| ◆ Pressure medium: air ◆ Pressure range: (0~2.5) MPa ◆ Output port: M20 × 1.5 quick connector (2 pcs) ◆ Dimensions: 340×290×330mm ◆ Weight: 10kg | ◆ Pressure medium: air ◆ Pressure range: (-0.1~0) MPa ◆ Output port: M20 × 1.5 quick connector (2 pcs) ◆ Dimensions: 340×290×330mm ◆ Weight: 10kg |
| Type C | Type D |
| ◆ Pressure medium: oil ◆ Pressure range: (0~60) MPa ◆ Output port: M20 × 1.5 quick connector (2 pcs) ◆ Dimensions: 350×290×350mm ◆ Weight: 12kg | ◆ Pressure medium: air ◆ Pressure range: (-0.1~0~2) MPa ◆ Output port: M20 × 1.5 quick connector (2 pcs) ◆ Dimensions: 470×420×340mm ◆ Weight: 15kg |
| Previous:Digital Precision Pressure Gauge | next:DTS-300BG-mt Micro Smart Heating Calibration Oil Bath |
